Washer ISO 7090 Standard
Washer ISO 7090 Standard
|

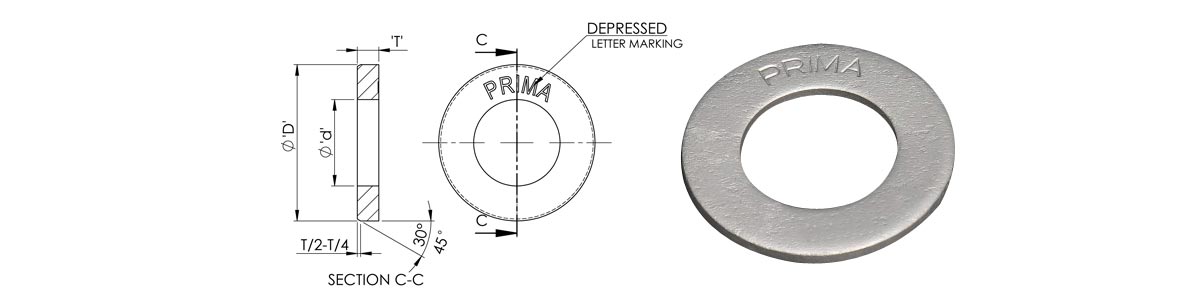

Washer Dimensions in mm
|
||||||||
|---|---|---|---|---|---|---|---|---|
|
SIZE |
D |
D |
T |
F |
G |
|||
|
min. |
max. |
max. |
min. |
max. |
min. |
|||
|
M10 |
10.50 |
10.77 |
20.00 |
19.48 |
2.20 |
1.80 |
0.3 |
0.42 |
|
M12 |
13.00 |
13.27 |
24.00 |
23.48 |
2.70 |
2.30 |
0.3 |
0.42 |
|
M14 |
15.00 |
15.27 |
28.00 |
27.48 |
2.70 |
2.30 |
0.3 |
0.42 |
|
M16 |
17.00 |
17.27 |
30.00 |
29.48 |
3.30 |
2.70 |
0.3 |
0.42 |
|
M18 |
19.00 |
19.33 |
34.00 |
33.38 |
3.30 |
2.70 |
0.3 |
0.50 |
|
M20 |
21.00 |
21.33 |
37.00 |
36.38 |
3.30 |
2.70 |
0.3 |
0.50 |
|
BM22 |
23.00 |
23.33 |
39.00 |
38.38 |
3.30 |
2.70 |
0.3 |
0.50 |
|
M24 |
25.00 |
25.33 |
44.00 |
43.38 |
4.30 |
3.70 |
0.4 |
0.50 |
|
M27 |
28.00 |
28.33 |
50.00 |
49.38 |
4.30 |
3.70 |
0.4 |
0.50 |
|
M30 |
31.00 |
31.39 |
56.00 |
55.26 |
4.30 |
3.70 |
0.4 |
0.92 |
|
M33 |
34.00 |
34.62 |
60.00 |
58.80 |
5.60 |
4.40 |
0.4 |
0.92 |
|
M36 |
37.00 |
37.62 |
66.00 |
64.80 |
5.60 |
4.40 |
0.6 |
0.92 |
|
M39 |
42.00 |
42.62 |
72.00 |
70.80 |
6.60 |
5.40 |
0.6 |
0.92 |
|
M42 |
45.00 |
45.62 |
78.00 |
76.80 |
9.00 |
7.00 |
0.6 |
0.92 |
|
M45 |
48.00 |
48.62 |
85.00 |
83.60 |
9.00 |
7.00 |
0.6 |
0.92 |
|
M48 |
52.00 |
52.74 |
92.00 |
90.60 |
9.00 |
7.00 |
0.6 |
0.92 |
|
cM52 |
56.00 |
56.74 |
98.00 |
96.60 |
9.00 |
7.00 |
0.6 |
0.92 |
|
M56 |
62.00 |
62.74 |
105.00 |
103.60 |
11.00 |
9.00 |
0.6 |
0.92 |
|
M60 |
66.00 |
66.74 |
110.00 |
108.60 |
11.00 |
9.00 |
0.6 |
0.92 |
|
M64 |
70.00 |
70.74 |
115.00 |
113.60 |
11.00 |
9.00 |
0.6 |
0.92 |
