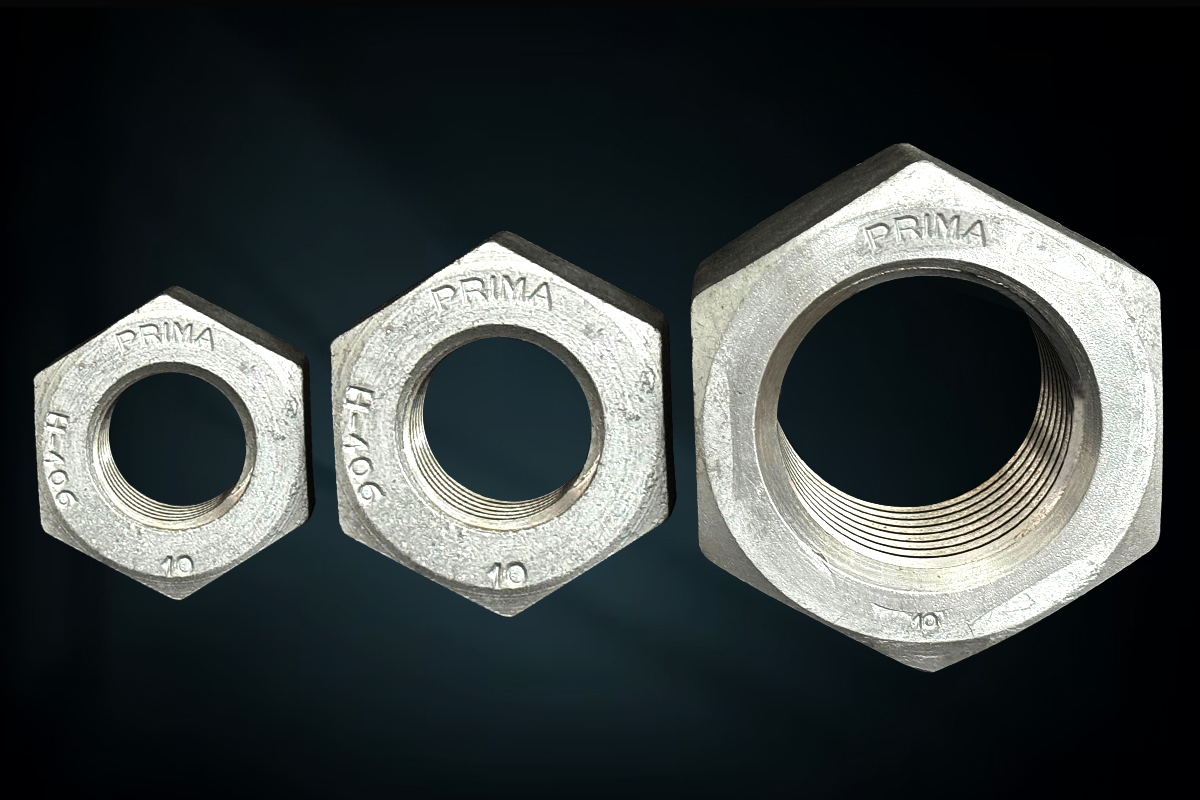

Hex Nut ISO 4032
Hex Nut ISO 4032

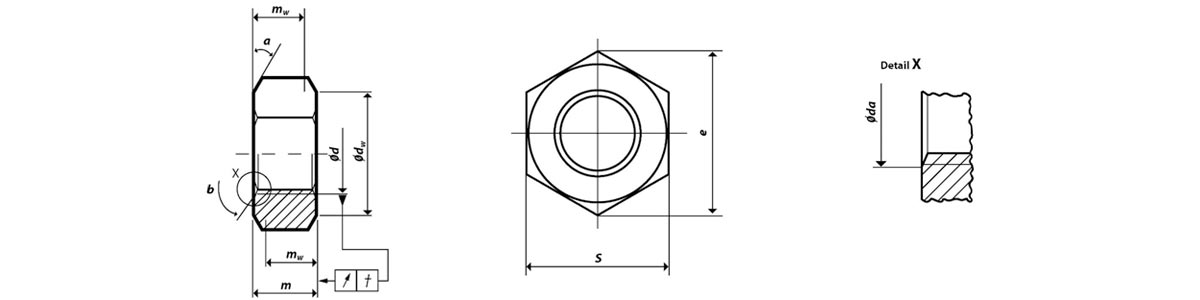

| Nut Dimensions in (mm¹) | ||||||||||||
| Threadsize(d) | M30 |
M33 |
M36 |
M39 |
M42 |
M45 |
M48 |
M52 |
M56 |
M64 |
M72 |
|
| P Pitch | 3.5 |
3.5 |
4 |
4 |
4.5 |
4.5 |
5 |
5 |
5.5 |
6.0 |
6.0 |
|
| da | max | 32.4 |
35.6 |
38.9 |
42.1 |
45.4 |
48.6 |
51.8 |
56.2 |
60.5 |
69.1 |
77.8 |
| min | 30.0 |
33.0 |
36.0 |
39.0 |
42.0 |
45.0 |
48.0 |
52.0 |
56.0 |
64.0 |
72.0 |
|
| dw²)min | 42.8 |
46.6 |
51.1 |
55.9 |
60.0 |
64.7 |
69.5 |
74.2 |
78.7 |
88.2 |
97.7 |
|
| emin | 50.85 |
55.37 |
60.79 |
66.44 |
71.3 |
76.95 |
82.6 |
88.25 |
93.56 |
104.86 |
116.16 |
|
| m | max | 25.6 |
28.7 |
31.0 |
33.4 |
34.0 |
36.0 |
38.0 |
42.0 |
45.0 |
51.0 |
58.0 |
| min | 24.3 |
27.4 |
29.4 |
31.8 |
32.4 |
34.4 |
36.4 |
40.4 |
43.4 |
49.1 |
56.1 |
|
| mw3)min | 19.4 |
21.9 |
23.5 |
25.4 |
25.9 |
27.5 |
29.1 |
32.3 |
34.7 |
39.3 |
44.9 |
|
| s | max | 46.00 |
50.00 |
55.0 |
60.0 |
65.0 |
70.0 |
75.0 |
80.0 |
85.0 |
95.0 |
105.0 |
| min | 45.00 |
49.00 |
53.8 |
58.8 |
63.1 |
68.1 |
73.1 |
78.1 |
82.8 |
92.8 |
102.8 |
|
| t4) | 0.63 |
0.69 |
0.76 |
0.82 |
0.44 |
0.47 |
0.50 |
0.55 |
0.58 |
0.66 |
0.73 |
|
