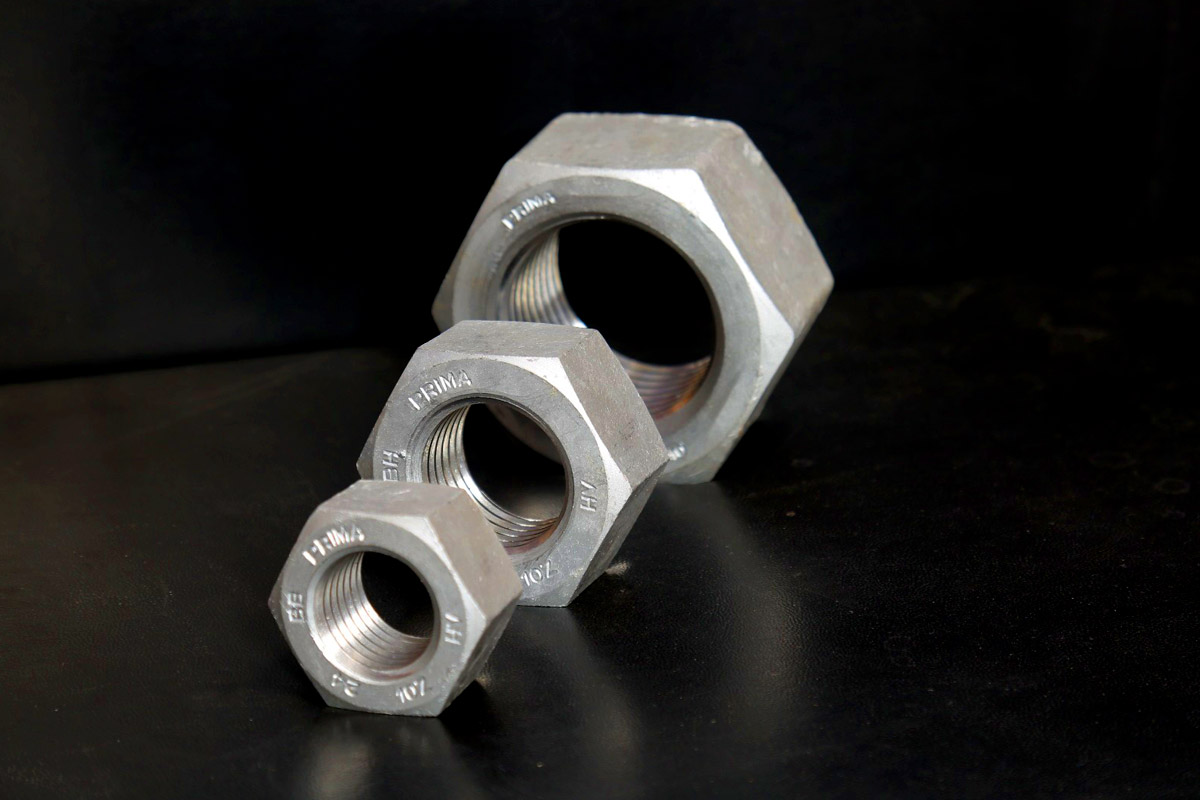

Hex Nut EN 14399-4
Prima Hi-Tensile Pvt. Ltd. is the best leading Hex Nuts Manufacturer in India. We, Prima Hi-Tensile Pvt. Ltd. offer Hex Nuts in different sizes & standards. Hex Nuts are also available in different materials and grades. Hex Nuts used for construction materials for projects such as Wind Mill, Railway, Petrochemical and Transmission Line. Hex Nuts are also available in different materials and grades.
We manufacture high-quality Hex Nuts fasteners. We have a wide range of Hex Nuts, with ready stock for export and supply. We take orders and manufacture as per the customer’s requirements.

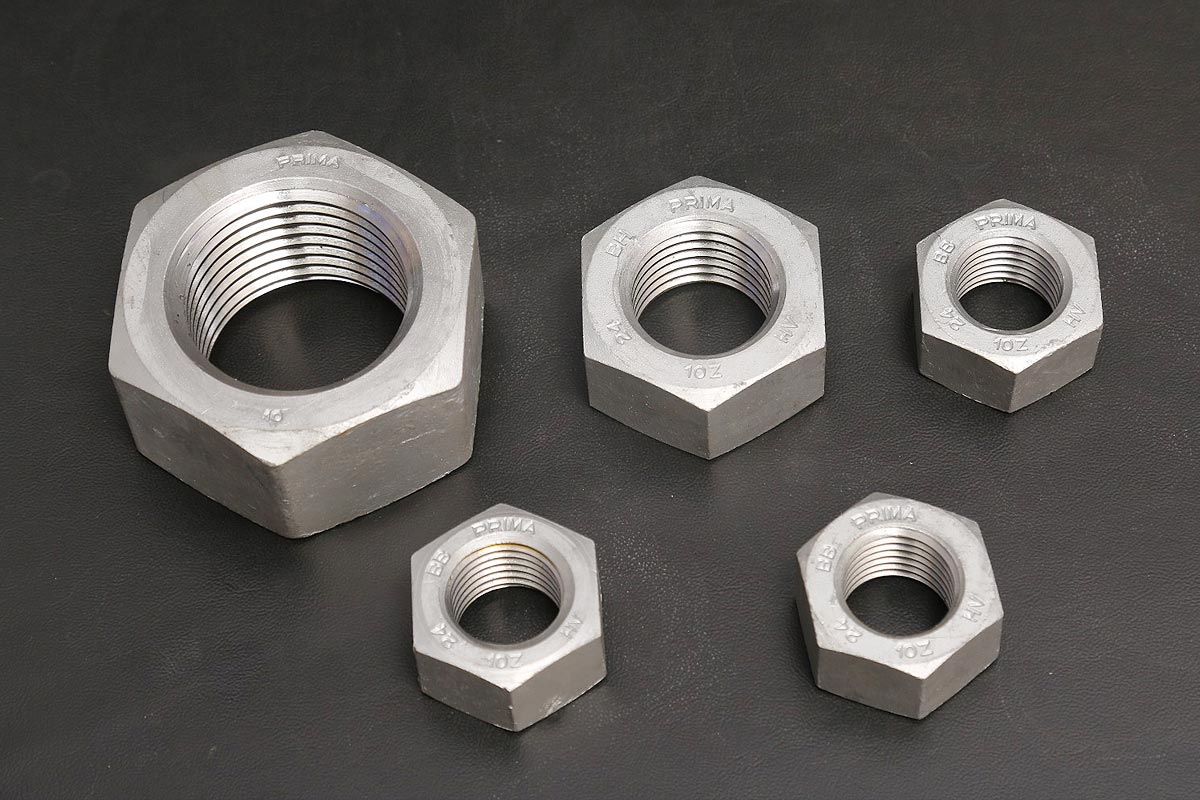

Hex Nut EN 14399-4

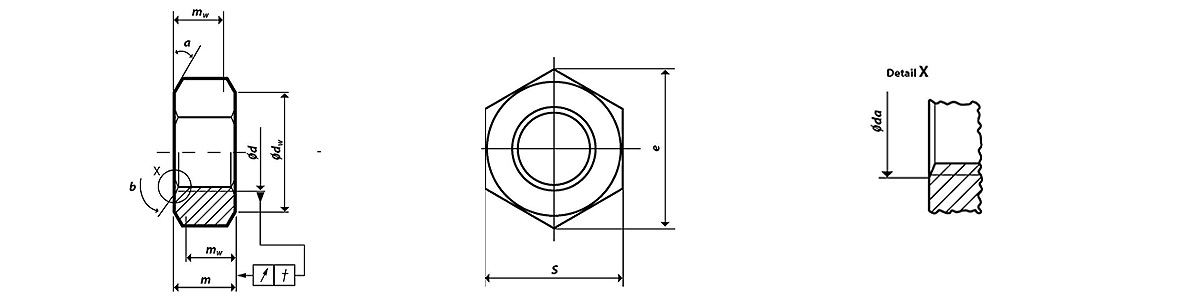

Hex Nut Dimensions in mm¹ | ||||||||||
Thread size (d) | M30 | M36 | M39 | M42 | M45 | M48 | M56 | M64 | M72 | |
P Pitch | 3.5 | 4 | 4 | 4.5 | 4.5 | 5 | 5.5 | 6 | 6 | |
da | Max | 31.2 | 37.45 | 40.6 | 43.7 | 46.8 | 49.9 | 58.25 | 66.55 | 74.88 |
Min | 30 | 36 | 39 | 42 | 45 | 48 | 56 | 64 | 72 | |
dw 2) min | 46.7 | 56 | 60.1 | 64.8 | 69.6 | 74.3 | 83.5 | 93 | 102.5 | |
e min | 55.47 | 66.54 | 71.4 | 77.05 | 82.7 | 88.35 | 99.3 | 110.6 | 121.9 | |
M | Max | 24 | 29 | 31 | 34 | 36 | 38 | 45 | 51 | 58 |
Min | 23.42 | 28.35 | 30.2 | 33.2 | 35.2 | 37.2 | 44.2 | 50.05 | 57.05 | |
mw 3) min | 18.26 | 22.26 | 23.6 | 26 | 27.6 | 29.2 | 34.8 | 39.4 | 44.98 | |
S | Max | 49.9 | 59.9 | 64.9 | 69.9 | 74.9 | 79.9 | 89.9 | 99.9 | 109.9 |
Min | 49.1 | 58.9 | 63.2 | 68.2 | 73.2 | 78.2 | 87.9 | 97.9 | 107.9 | |
t 4) | 0.63 | 0.76 | 0.82 | 0.44 | 0.47 | 0.5 | 0.58 | 0.66 | 0.73 | |
|
Internal screw thread limits for tolerance class 6AZ – restricted |
|||||
|
Thread |
Major diameter min. |
Pitch diameter |
Minor diameter |
||
|
max. |
min. |
max. |
min. |
||
|
M30 |
30.37 |
28.321 |
28.097 |
27.031 |
26.581 |
|
M36 |
36.38 |
34.018 |
33.782 |
32.525 |
32.05 |
|
M39 |
39.38 |
37.018 |
36.782 |
35.525 |
35.05 |
|
M42 |
42.39 |
39.717 |
39.467 |
38.049 |
37.519 |
|
M45 |
45.39 |
42.717 |
42.467 |
41.049 |
40.519 |
|
M48 |
48.4 |
45.417 |
45.152 |
43.547 |
42.987 |
|
M56 |
56.41 |
53.118 |
52.838 |
51.056 |
50.456 |
|
M64 |
64.42 |
60.823 |
60.523 |
58.555 |
57.925 |
|
M72 |
72.42 |
68.823 |
68.523 |
66.555 |
65.925 |
