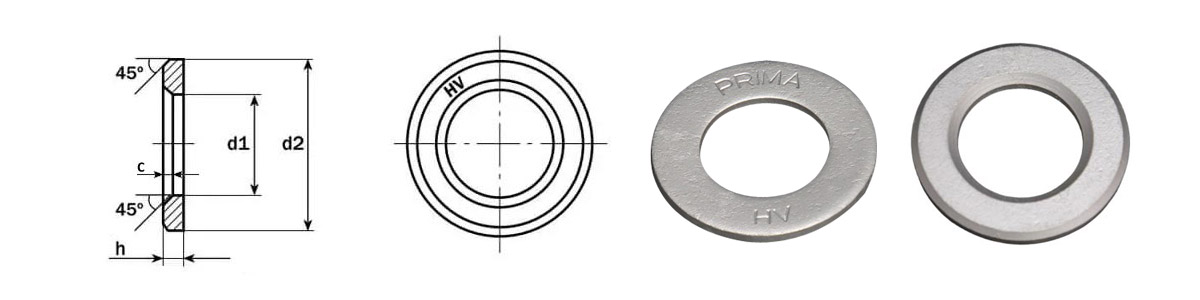

DIN - 6916 Chamffered Washer (HV Mark)
DIN - 6916 Chamffered Washer (HV Mark)
| Washer Dimensions in mm | |||||||||
| Thread Size | M24 | M27 | M30 | M36 | M42 | M48 | M56 | M64 | |
| d1 | max | 25.32 | 28.50 | 31.60 | 37.60 | 44.0 | 50.0 | 58.7 | 66.7 |
| d1 | min | 25.01 | 28.02 | 31.02 | 37.02 | 43.42 | 49.42 | 58.05 | 66.05 |
| d2 | max | 43.98 | 49.95 | 55.95 | 65.95 | 77.95 | 91.95 | 104.95 | 114.95 |
| d2 | min | 43.40 | 49.05 | 54.85 | 64.85 | 76.85 | 90.65 | 103.65 | 113.65 |
| h | nom | 4 | 5 | 5 | 6 | 8 | 8 | 10 | 10 |
| h | max | 4.28 | 5.55 | 5.55 | 6.55 | 9.15 | 9.15 | 11.15 | 11.15 |
| h | min | 3.72 | 4.45 | 4.45 | 5.45 | 6.85 | 6.85 | 8.85 | 8.85 |
| c | max | 2.5 | 3.0 | 3.0 | 3.5 | 3.5 | 4.0 | 4.45 | 4.95 |
| c | min | 2 | 2.5 | 2.5 | 3 | 3 | 3.4 | 4.05 | 4.55 |
| e~ | 1 | 1 | 1 | 1.5 | 1.5-3 | 1.5-3 | 2 – 4 | 3 – 4 | |
